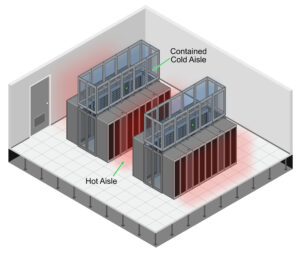

Illustration of a data center showing hot and cold aisles, with the cold aisle contained. Cold aisle containment with in row cooling.

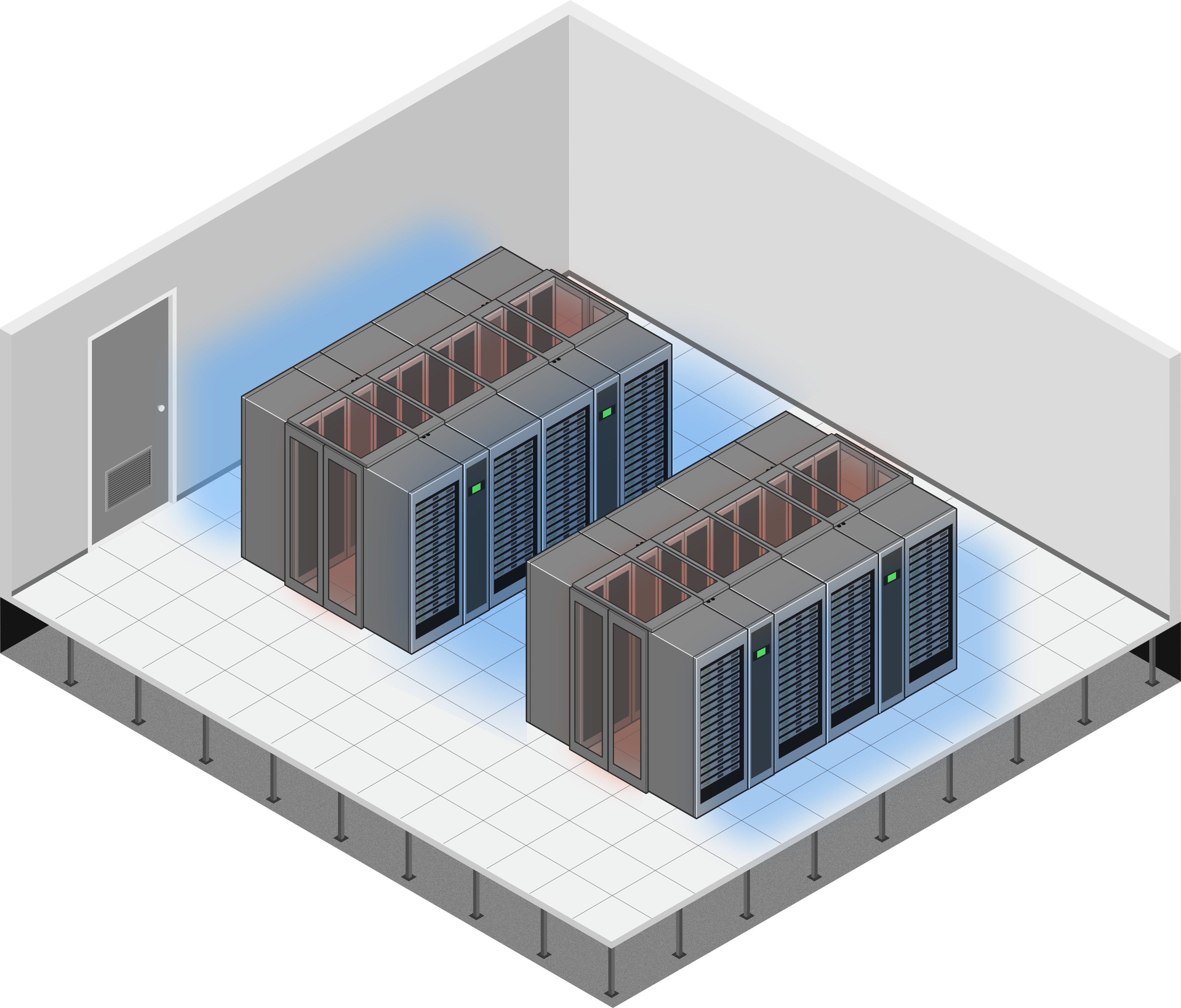

Illustration of a data center showing hot and cold aisles, with the hot aisle contained. Hot aisle containment with in row cooling.

HAC
Data Center HAC Module - 1098872

As part of our design strategy for the manufacture and assembly of data centre facilities, hot and cold aisle containment solutions are amongst the most impactful. Aisle containment systems enclose the space between server racks, collecting the IT equipment’s hot exhaust air, while the data hall architectural elements create a large cold-air plenum. This keeps the hot and cold air streams separated, ensuring effective cooling and PUE (Power Usage Effectiveness).

Modulise have developed a Ceiling Supported (CS) assembly catering to an array of different modular and off-site construction industry requirements. Standardised solutions offer high performing scalable and modular HAC designs with established interfacing for servers and cabling pathways. We also work closely with clients to meet their project specific needs, catering for bespoke structural capabilities, architectural finish, access control and interface with service racks and IT equipment.

Why Modulise?

Modulise Mark 01 is applicable to indoor data center scenarios, which features simple design and high building adaptability. It meets the data center deployment requirements of various sectors such as enterprise, finance, governments and carriers. Mark 01 is a modular-design, highly integrated solution which comprises power supply, cooling, rack & structure, cabling, management system within a module, meeting the requirements for quick delivery and on-demand deployment.

Services

Custom 3D Designs
Like picking a size when buying shoes online, we customise your designs to suit your project using 3D technology

Manufacture
Multiple facilities in Arklow & portlaoise of over 50,000SqFt available for large scale production and warehousing

Site Install
An expert team on site to project management and coordinate interface points with other trades

QA & Handover
Resources on hand to manage Factory & site inspections and coordinate QA & Cx for handover

Delivery
Full GPS visibility of all orders to track your lead times and deliveries from the factory to the sites

Survey
For retro fits or if unsure on dimensions, we are on hand to visit site and get accurate surveys avoiding all risks

With a productization business model we create a interactive environment which fits into a Design Start doing it the way its been proven to work from a mature consumer goods industry Manufacture-Construct Process

Ground Supported HAC

Multiple pre-fabricated steel frame modular HAC bays are erected on steel columns, transferring loading into the floor slab and creating opportunity to utilise a more light weight building frame
The freestanding HAC structure is designed to meet service loading requirements and can be scaled to satisfy project and server dimensions, guaranteeing quality for the controlled environment.
Pre-fabricated door sets and bespoke ironmongery arrangements provide access control to aisles.
The pre-fabricated HAC modules are designed to align with our clients rack layouts and heights, providing seamless integration of racks.
Products can be manufactured off-site and in ‘flat-pack’ for ease of transport and rapid assembly
